Heat Curing Protective Film

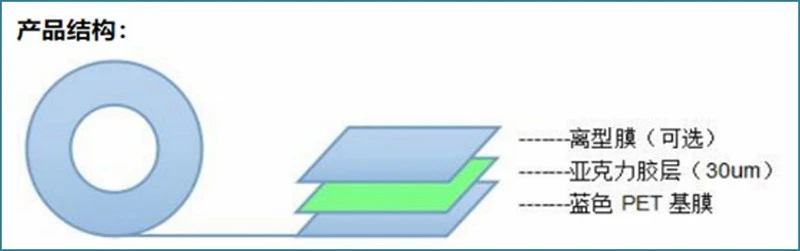

Heat curing protective film is made of PET film as substrate and coated with foaming acrylic PSA. The product has high peel force at normal temperature, and its force decreases after heating, which is easy to be peeled off.

Product has excellent adhesion before heat curing and with good fixation and protection.

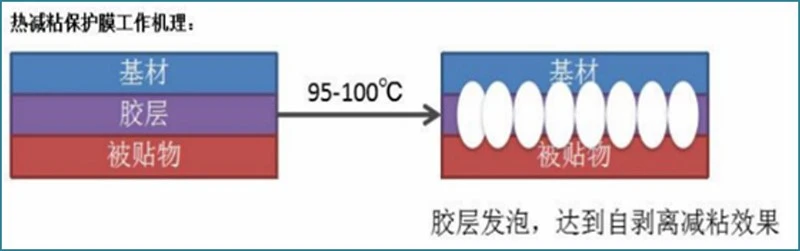

After 1-5 minutes at 100 ℃, the peel force decreases and it's easy to be peeled off.

After peeling off the protective film, the surface will be free of residual adhesive and contamination

It can be used for grinding and cutting process protection of ceramics, glass, wafer, etc.

1. Catering to customized die-cut parts are also available
2. Special product requirements, separate development can be undertaken

7 invention patents, 3 high-tech product certification certificates, 8 utility model patents, national high-tech enterprise, Suzhou Engineering Research Center; Apple Designates Green Factory

①Self developed synthesis of acrylic acid

② Organic silicon (Dow Chemical's largest customer)

③ Polyurethanes

④ Molecular weight design

⑤ Viscous design

⑥ Functional design

⑦ Resin modification

① Coating one-time molding

② Thousand level dust-free environment

③ Precision curing temperature control, automatic batching machine to avoid errors and variations in adhesive properties

④ Multiple coating process options

⑤ 0.01um Online thickness testing system with an accuracy of 0.01um

⑥ Online defect detection system

① 20 coating lines

② 9 rewinding machines, 18 slitting machines, and 11 cutting machines

● Key customers: Communication industry: Samsung, Apple, Huawei, Xiaomi, oppo

● Automotive industry: BYD CATL Holitai MFLEX Anjie

● BOE TRULY Panel & Glass Industry: Lens biel BOE TRULY

● System certification: ISO9001, ISO14001 quality management certification; IATF16949 Automotive industry certification; UL
